Interlock & anti-loose, Heavy duty

HELO Profloor

HELO Profloor is a versatile interlocking SUPA floor for multi-scene use. This durable turfprotection floor, stadium floor and event floor fits uneven ground with adjustable angles. It works perfectly as a warehouse floor, storage floor and parking floor, supporting forklift operation. Translucent ventilated design protects lawns from yellowing and withering.

Key Product Parameters

Intall rate : 2000㎡/ 8 hours (crew of 4)
Loading weight : 200T/㎡
Life span : 10 years
Color no change : 10 years

Key Product Features

Product Description

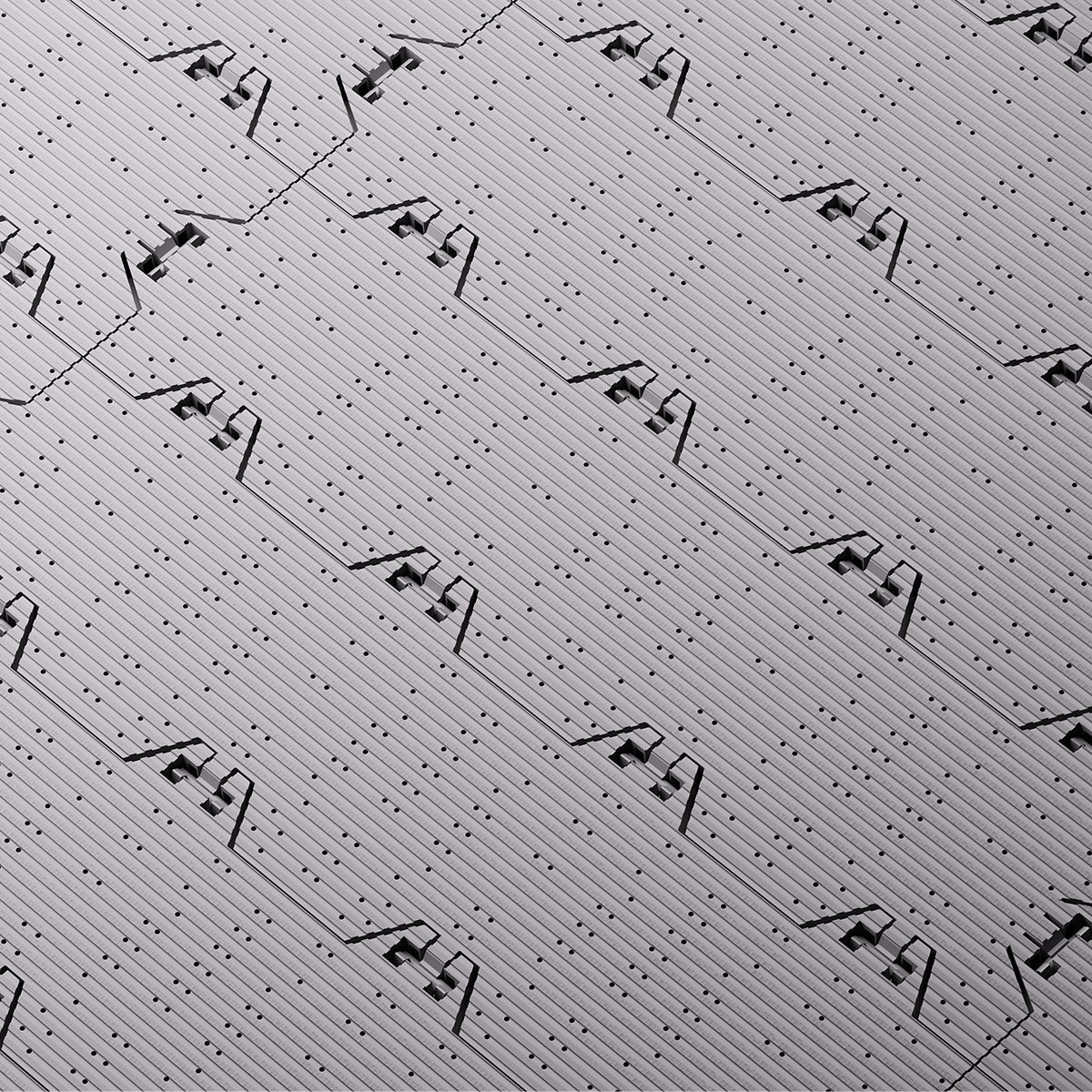

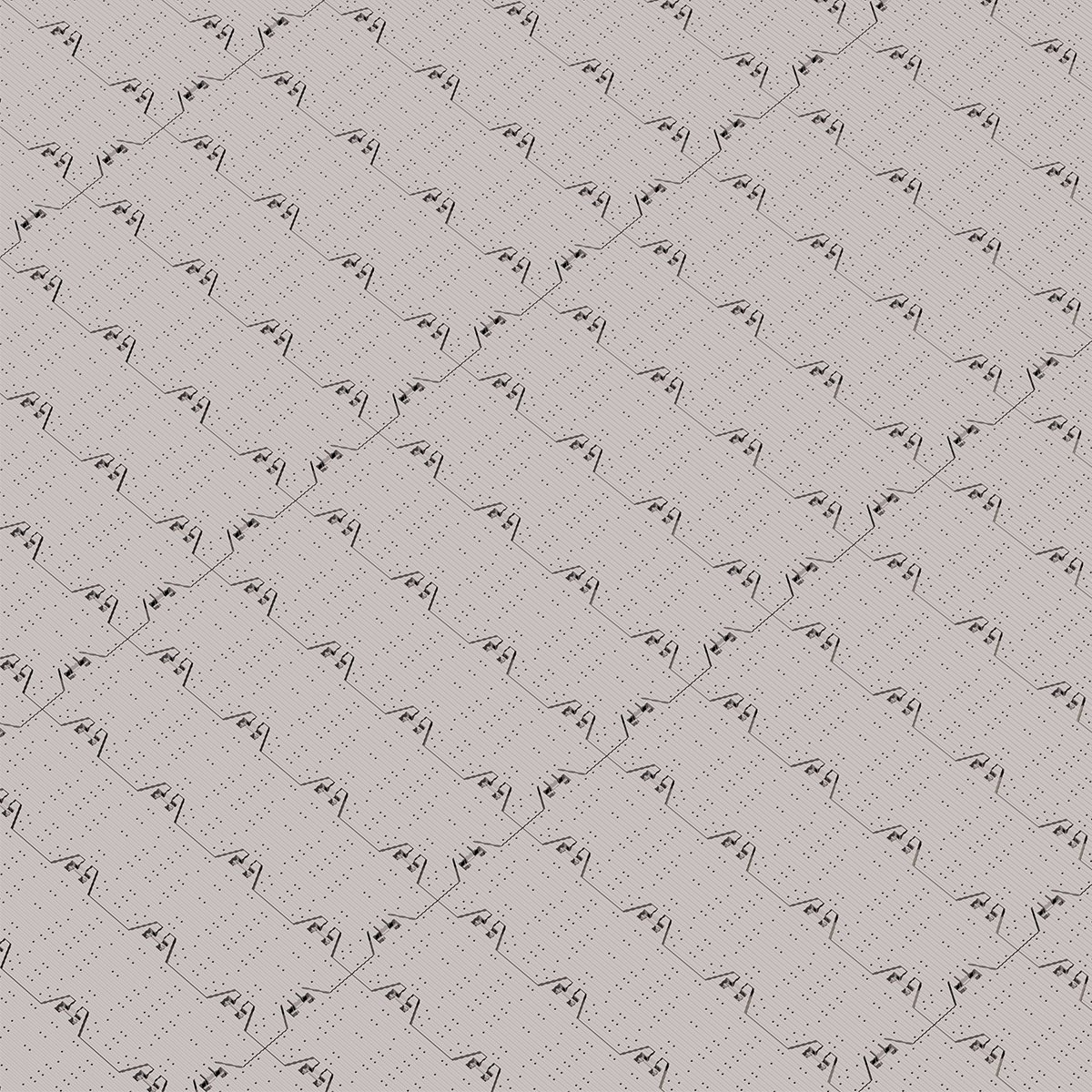

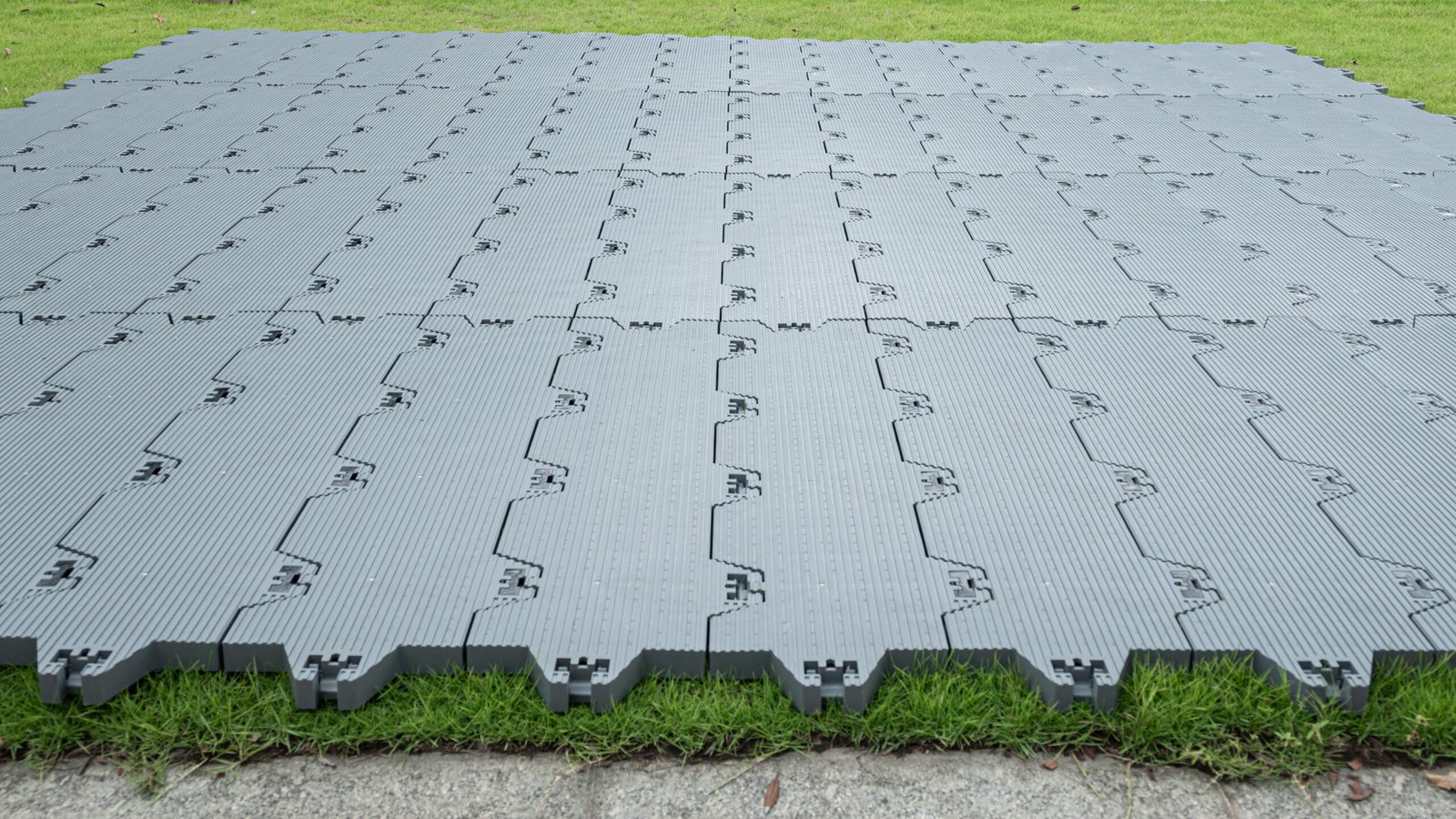

HELO Profloor is a high-performance modular SUPA floor tailored for diverse commercial and outdoor scenarios, serving as a multi-functional turfprotection floor, stadium floor, event floor, warehouse floor, storage floor and parking floor. Equipped with a professional interlocking structure, this durable SUPA floor effectively prevents loosening between modular floor panels. It allows angle adjustment between each panel, enabling stable laying on uneven ground, breaking the usage limitations of ordinary modular flooring.

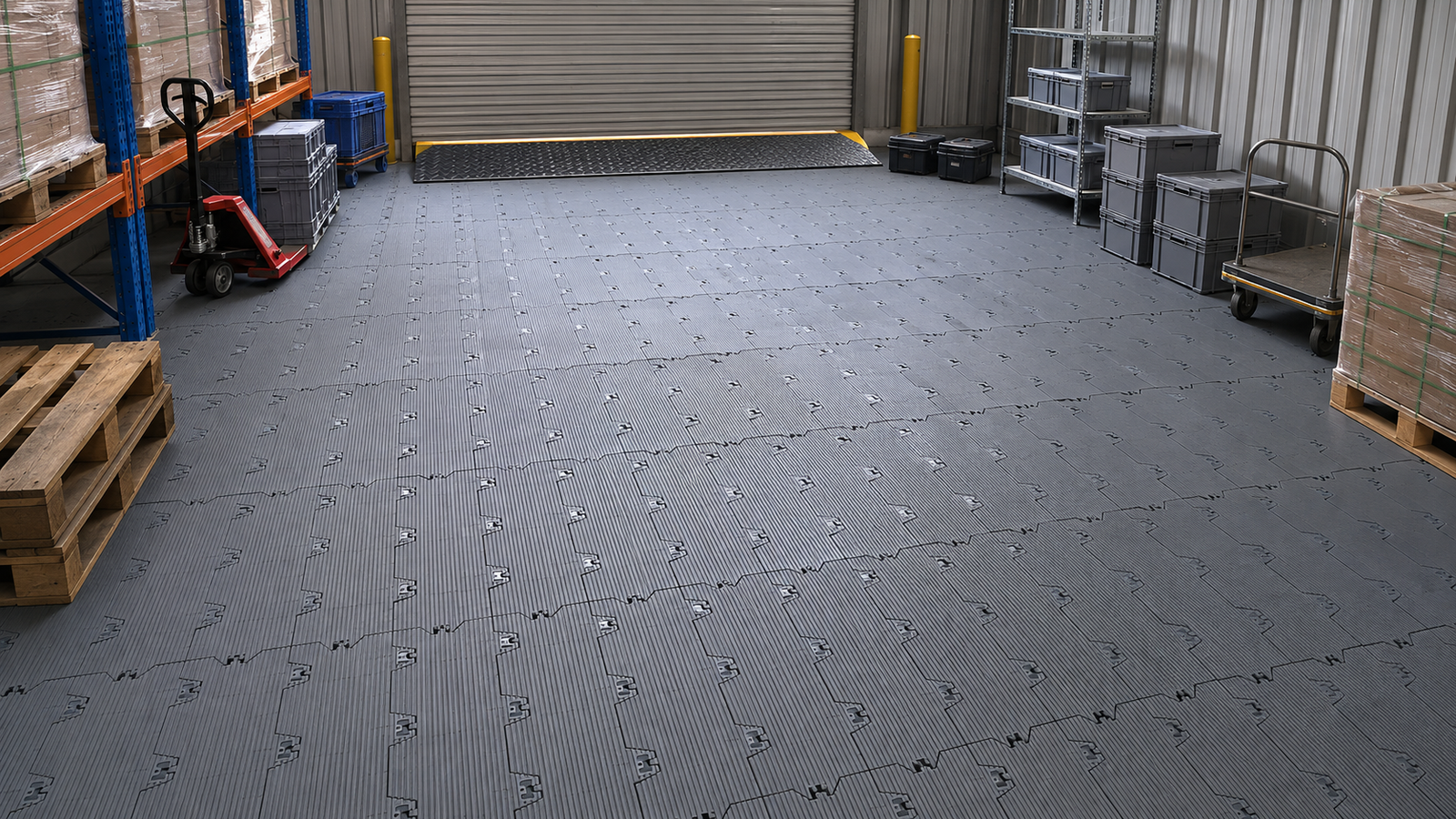

Featuring moderate load-bearing capacity, this sturdy warehouse floor and parking floor supports forklift driving and equipment handling, fully meeting industrial and temporary traffic usage needs. Boasting ultra-flexible installation and disassembly, the versatile HELO Profloor adapts to various temporary and fixed laying scenarios. It is widely applicable for warehouse ground paving, temporary walkways, parking areas, and temporary helicopter landing pads.

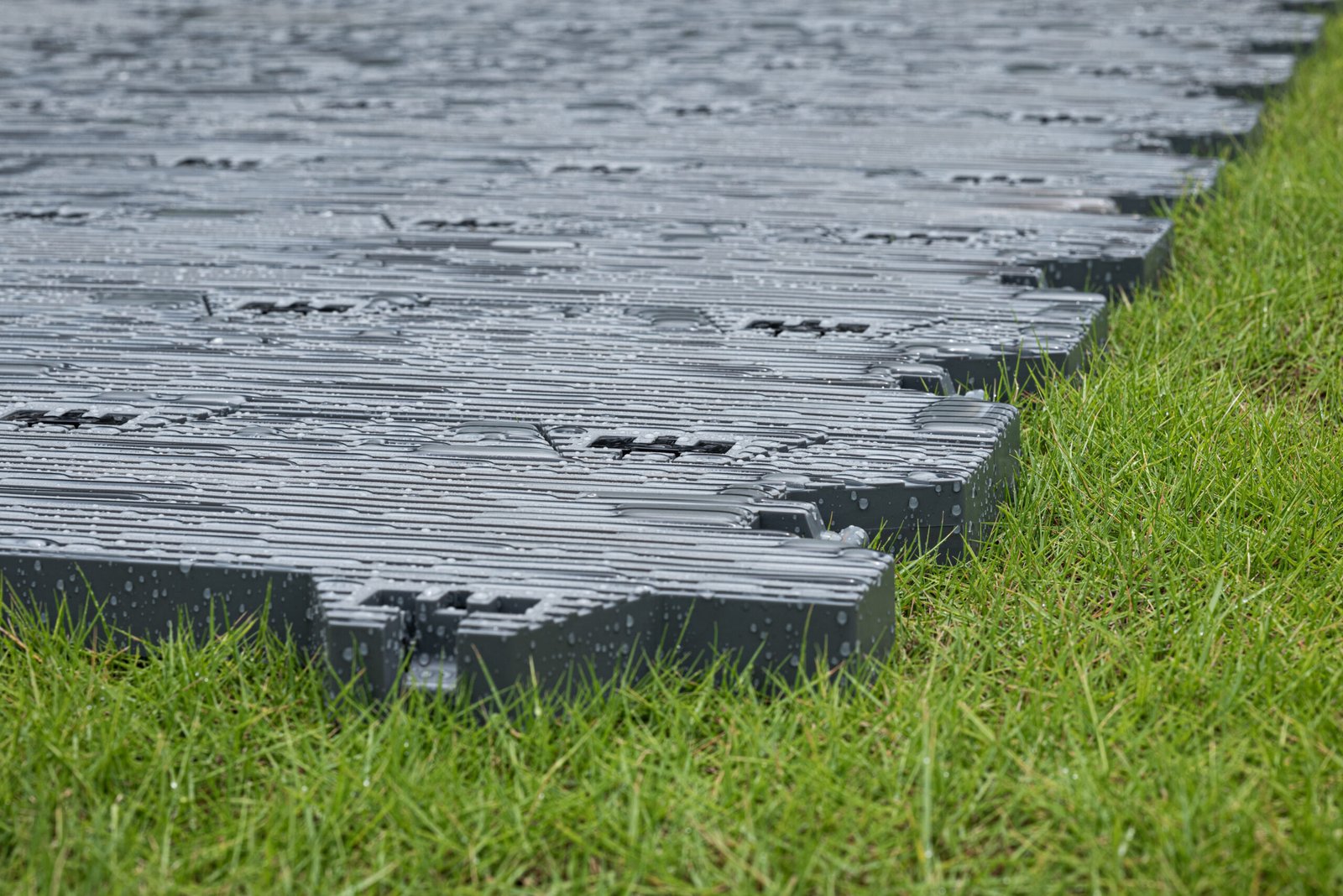

For lawn protection scenarios, the professional turfprotection floor version adopts a translucent and ventilated hole design. It allows light transmission and air circulation, keeping underlying lawns ventilated and breathable, effectively avoiding grass yellowing and withering. Reliable and practical, this all-in-one event floor and storage floor is an ideal multi-scene flooring solution.

Documentation & Certifications

Spec sheets, test reports, and certifications – everything you need for your project file.

Load Bearing Certificate

Coefficient of Friction Certificate

Light Transmittance Certificate

Installation Tools

We deliver the entire installation ecosystem, including the tools. You get everything in one shipment, ready for execution.

Stand-Up Pull Tool

Ergonomic tool for panel removal without bending.

Stand-Up Key

For locking and unlocking panel connections.

Replacement Hook Tip

Replacement tips for pull tools.

Replacement Key

Replacement keys for stand-up key tool.

Product Specifications

All specification requirements, including those needed by architects, engineers and the technical team.

HELO Profloor Technical Data Sheet

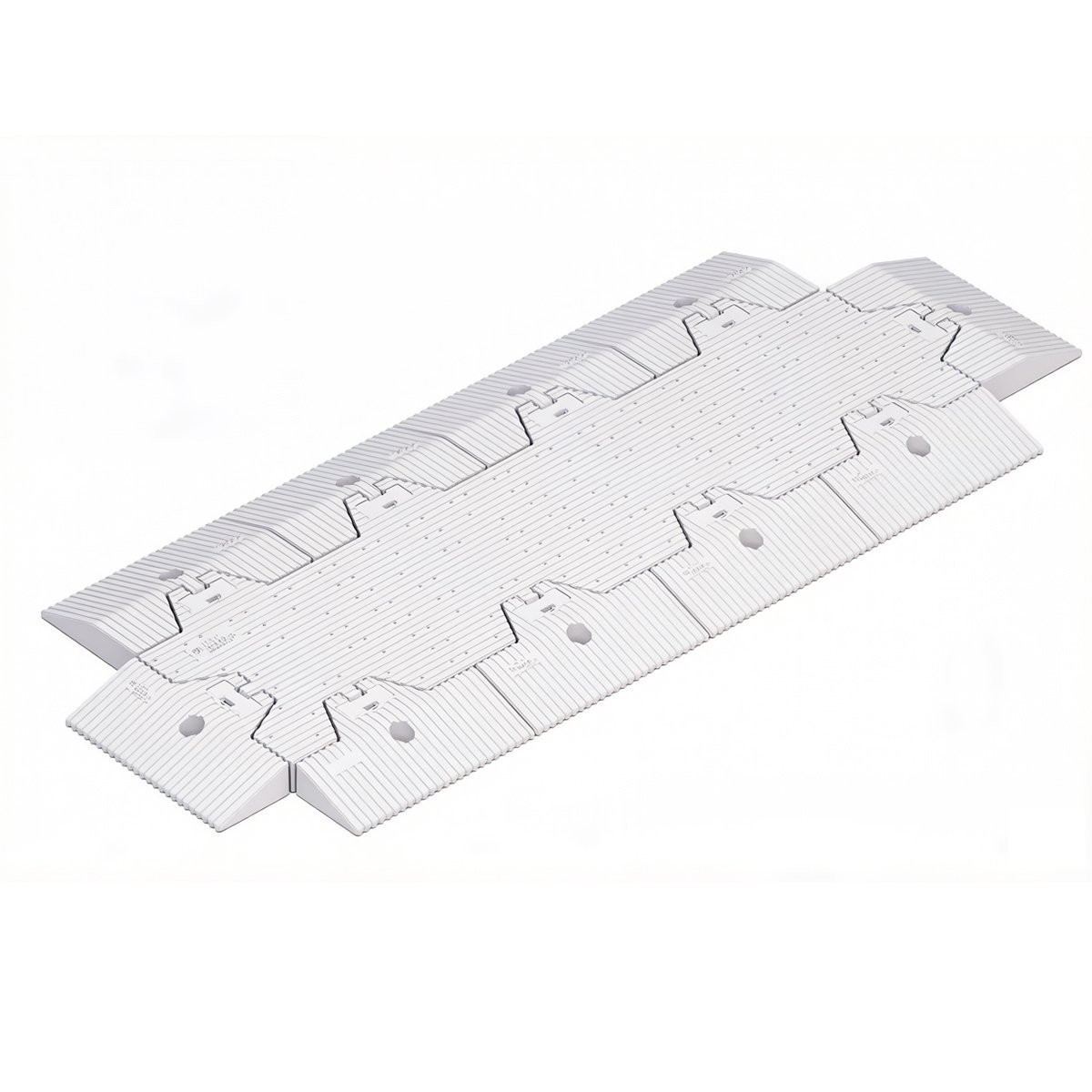

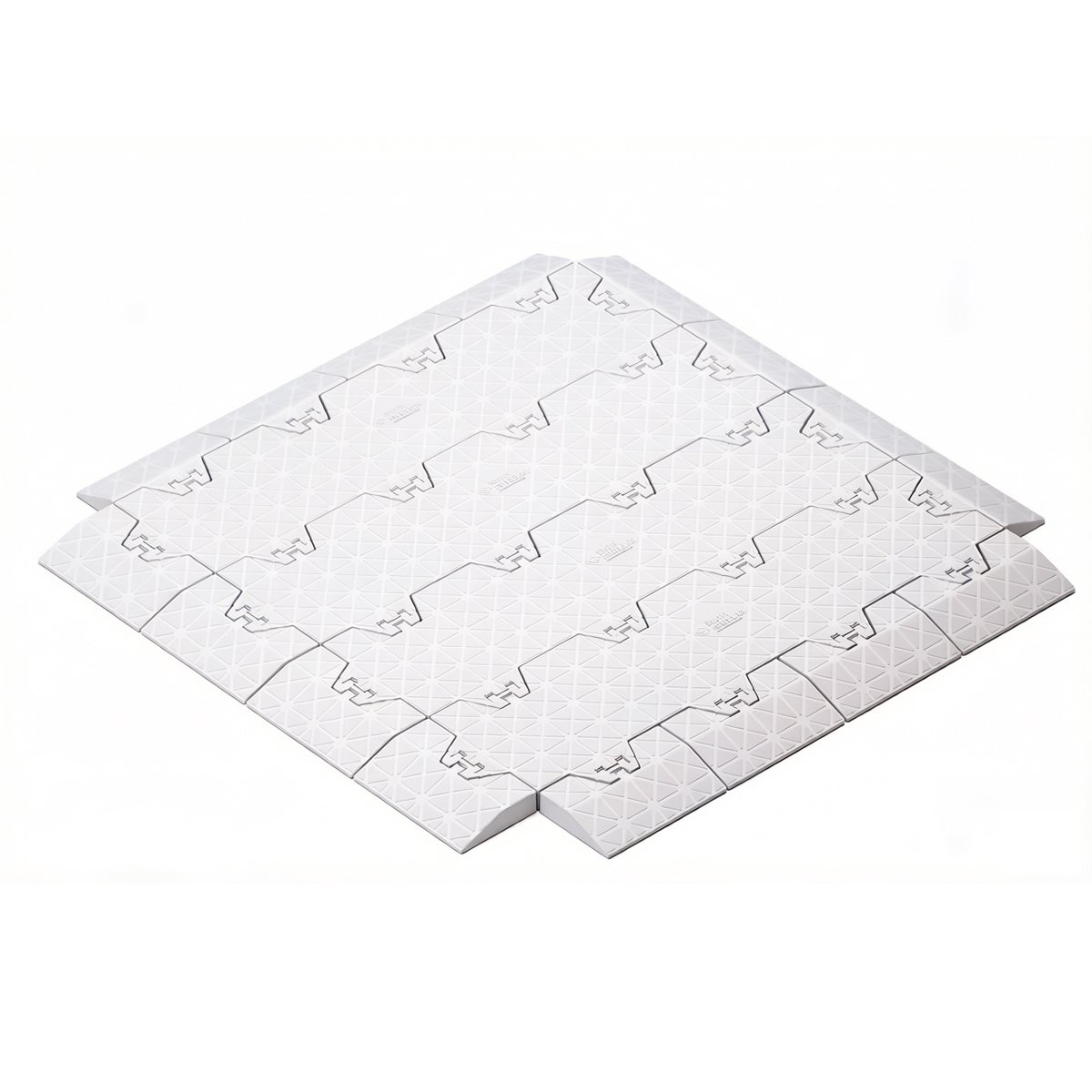

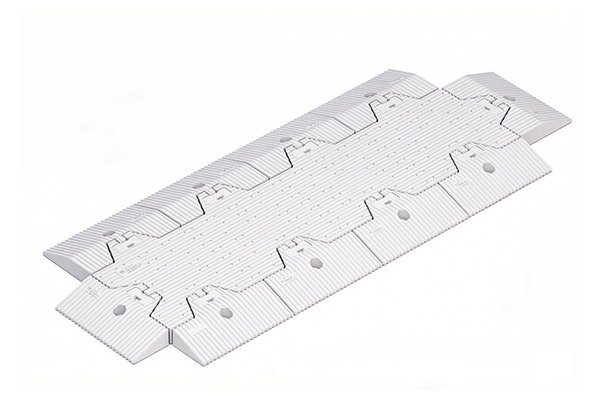

PRODUCT SPECIFICATIONS                                     RAMP SPECIFICATIONS

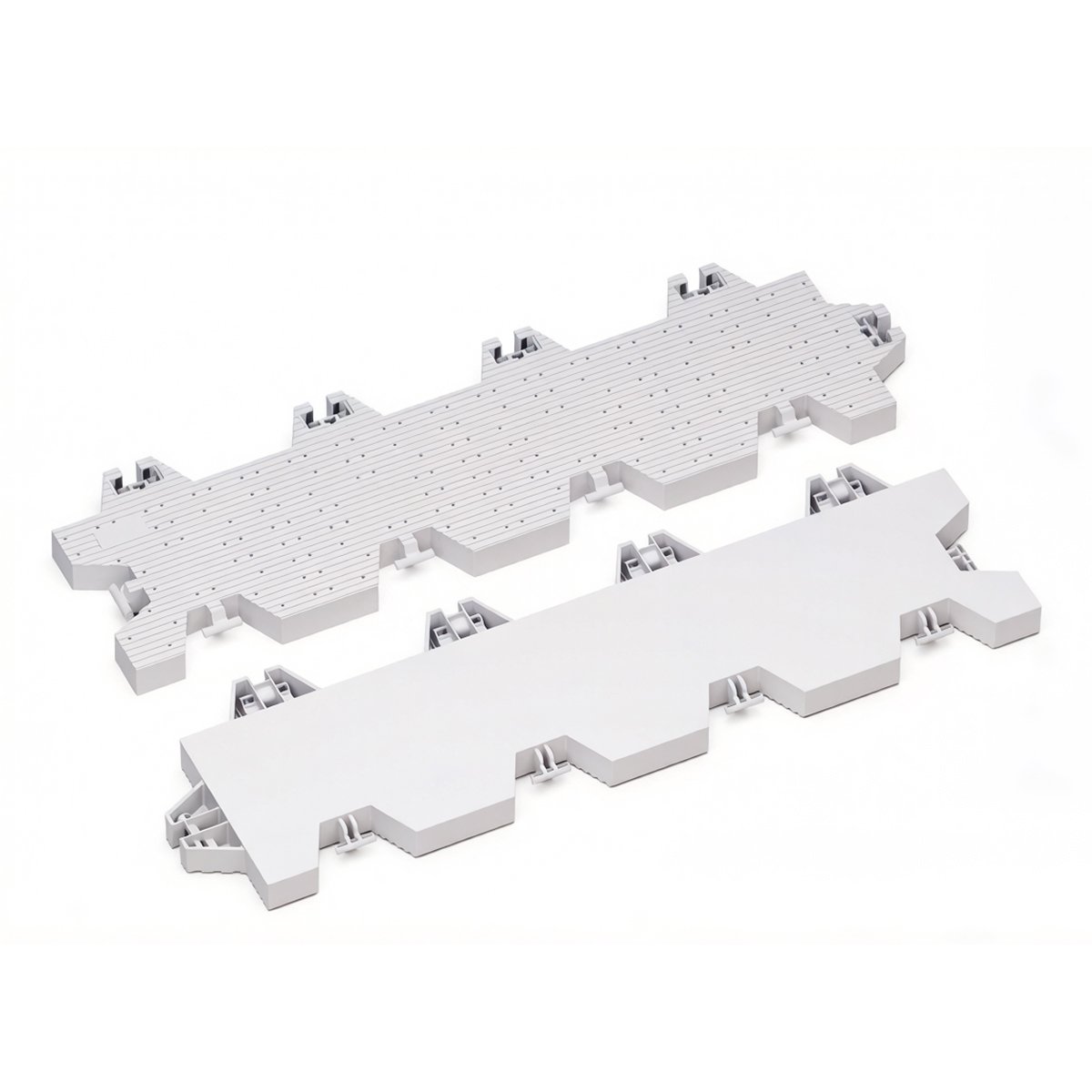

MODULE SIZE Panel Actual Dimensions
1.06mx031mx35mm(1.21㎡)
Panel Usable Dimensions
1.0 mx0.25mx35mm
4 pcs/㎡
0.24 mx 0.16mx 35 mm
WEIGHT 2.35kg / piece;  9.4kg / ㎡ 0.25 kg
COMPRESSION STRENGTH 200T/㎡
SLIP RESISTANCE VALUE 46  (Class: P5)
TOTAL LUMINOUS TRANSMITTANCE 40.4% (Only for white)
COLOR Translucent White, Black, or Gray.
MATERIAL PP Plastic PP Plastic
TEMPERATURE RANGE -10ºC–45ºC
FLAMMABILITY RATING UL 94-HB
CONNECTION SYSTEM Quick-release buckle system, with an additional quick-fastening cover.
SHIPPING CAPACITY Standard 40ft HC container:
5,600 pcs / 1,400 ㎡


Watch the actual installation video

Installation tutorials and project references. Everything your team needs to see.

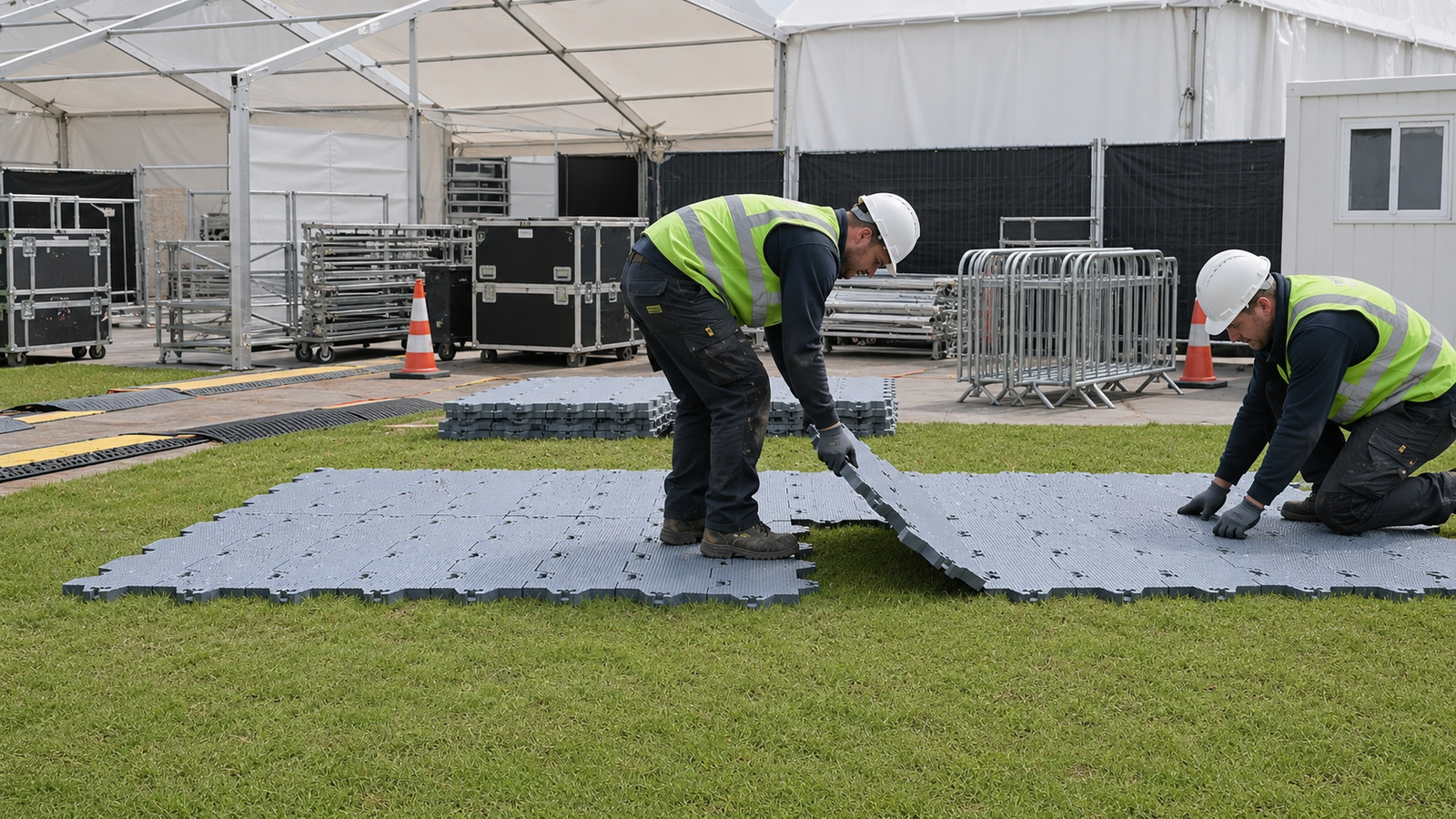

Installation Guide

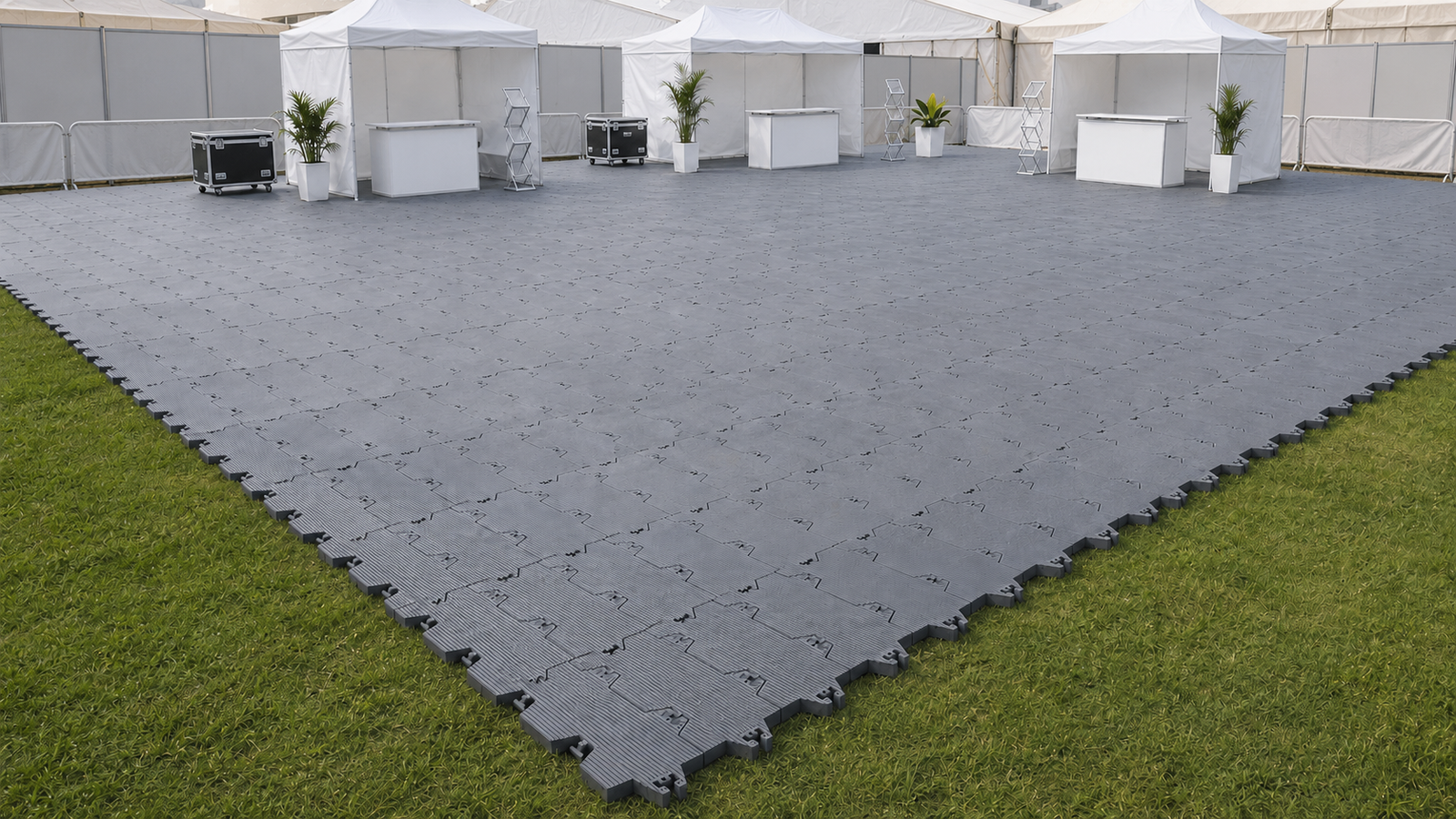

Whether it's a festival, wedding, or trade show, we deliver guest-ready surfaces with speed and care.

Crew Stadium Transformation

Supa Modular Floor temporary flooring system was used in for an incredible show!

Horse Arena Custom Install

See how panels are cut to fit curved layouts perfectly.
